Section 1:

Class and Object Diagrams

Version 0:

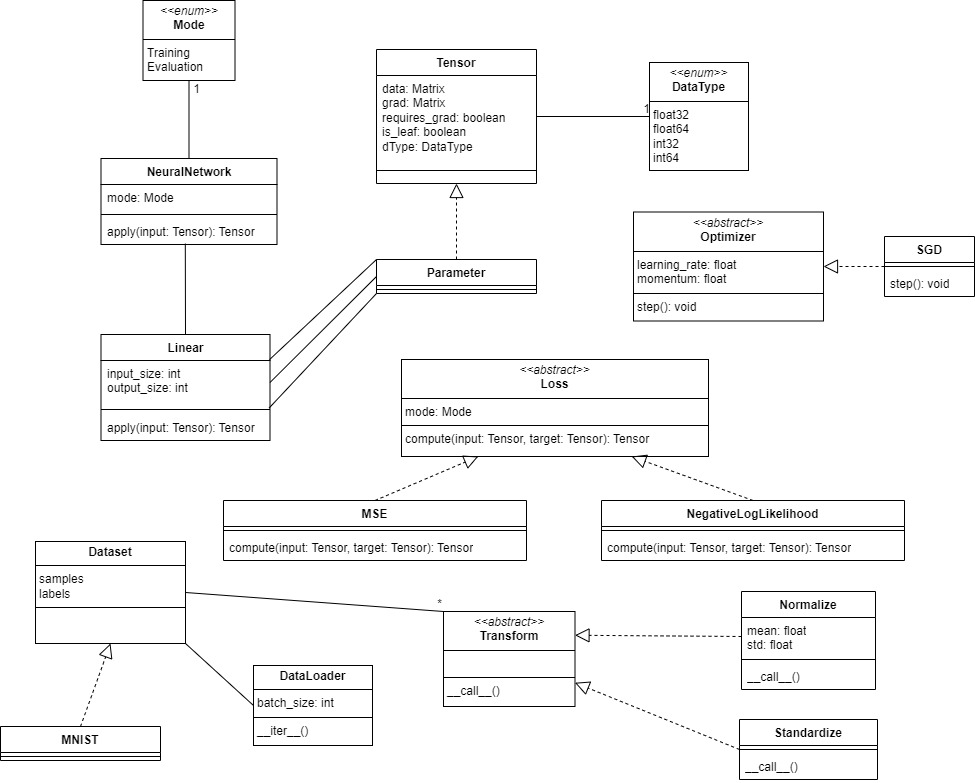

First Version of the Class Diagram

This initial version of the class diagram was constructed according to the description given for each entity, similar to the UML we have seen in class. It was later refined following the user interface that we must use and the implementation of the code.

Final Version:

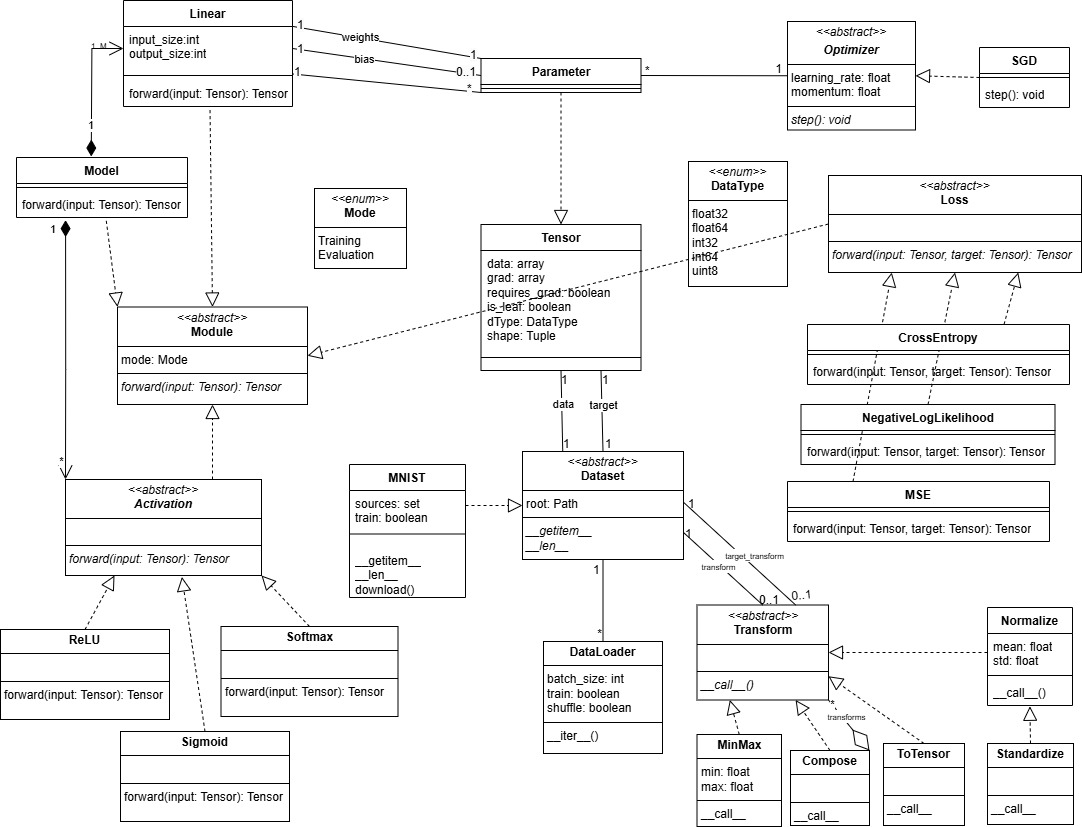

Class Diagram:

Final Version of the Class Diagram

Object Diagram:

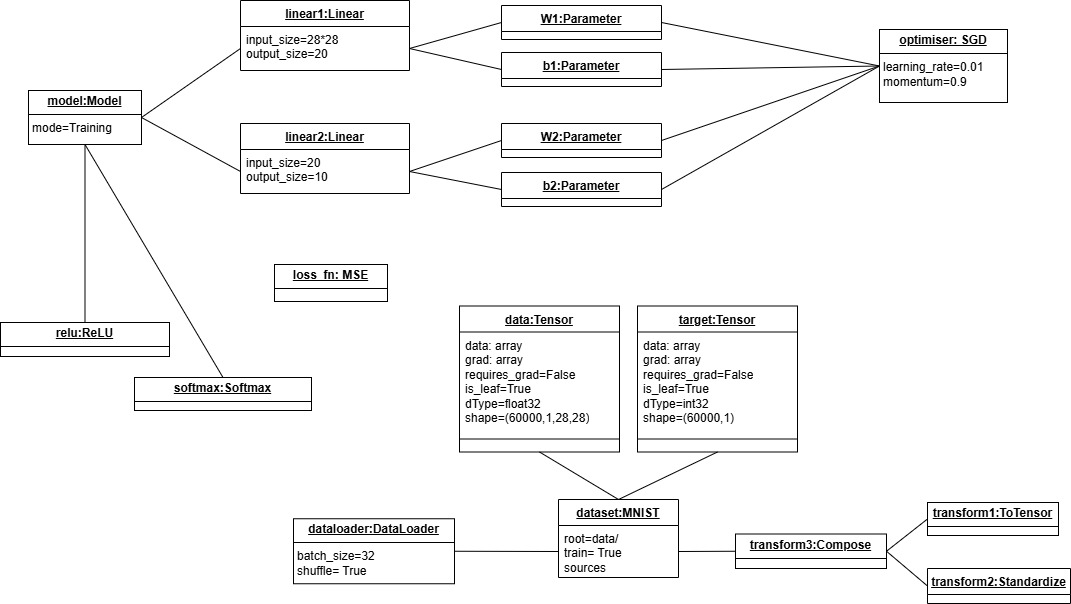

Final Version of the Object Diagram

To provide an object diagram, we took a specific example. Note that the abstract classes we defined cannot be instantiated as objects. So the object diagram contains only the entities that can be instantiated as objects with their attributes. We considered a model with mode=Training and a dataset of type MNIST with train=True that have data and target as Tensor type. A dataloader with batch_size=32 and shuffle=True is used to load the dataset, and transform3 of type Compose is applied to the dataset and this transform3 is composed of two other transforms, transform1 of type ToTensor and transform2 of type Standardize. The model has two linear layers, one ReLU activation function to be applied after the first linear layer and a second activation function: Softmax to be applied to the output layer. linear1 has W1 and b1 as parameters, and linear 2 has W2 and b2 as parameters. All the parameters will be accessed by the optimiser of type SGD with learning_rate=0.01 and momentum=0.9 to update them. A loss_fn of type MSE is used. Only direct relationships are shown in the object diagram similar to the class diagram, but the model will have access to the data by using the dataloader and the loss function will be applied to the output of the model and the target of the dataset.

Computation Graph Implementation

In our library, the computation graph is implicitly constructed by storing the parents of the outputs of all operations along with name of the operation that led to them and its corresponding derivation formula.

Forward Pass & Graph Construction

Initial Version

With the execution of forward through y_hat = model(x), multiple linear steps are executed:

x = self.linear1(x)
x = self.relu(x)
x = self.linear2(x)
x = self.softmax(x)

Each step involves one or more basic operations. For instance, self.linear1(x) consists of the __matmul__ x@weights and the __add__ (x@weights)+bias. For each operation, the parents, operation name, and corresponding grad function will be stored in the output. Thus, by the end of the forward propagation, we can trace y_hat as the softmax output of its predecessor, which is the output of the addition of the biases of linear2 and (x@weights2), and so on to the beginning. This gives rise to a conceptual computation graph representation storing all primitive steps of the forward propagation, as well as the gradient functions needed for the backward propagation later on.

To achieve this, all primitive operations were redifined in Tensor. An example is provided below:

def __matmul__(self, other):
        other = other if isinstance(other, Tensor) else Tensor(other)
        out = Tensor(self.data @ other.data, requires_grad=self.requires_grad or other.requires_grad)
        out.parents = {self, other}
        def _backward(grad):
            if self.requires_grad:
                if self.grad is None:
                    self.grad = grad @ other.data.T
                else:
                    self.grad += grad @ other.data.T
            if other.requires_grad:
                if other.grad is None:
                    other.grad = self.data.T @ grad
                else:
                    other.grad += self.data.T @ grad
        out.grad_fn = _backward
        out.grad_fn_name = "MatMulBackward"
        return out

Within each primitive operation, the operands are added to a set called parents. It must be a set since the same operand could occur more than once but it must be counted only once. Similarly, the operation name is stored in grad_fn_name. A _backward function is defined within each primitive operation to compute its gradient. The function is stored in grad_fn to be only executed when needed.

Moreover, in the initial version (as in branches prototype and prototype2), the activation functions were also defined in the same format within Tensor to simplify testing. The forward method of the loss functions that inherit class Loss were also defined in the same format to contribute to the computation graph construction. For instance, MSE was defined as follows:

class MSE(Loss):
    def forward(self, y, y_hat):
        batch_size = y_hat.data.shape[0]
        error = y_hat.data - y.data
        loss = np.mean(error ** 2)
        out = Tensor(loss, requires_grad=True)

        out.parents = {y, y_hat}

        def _backward(grad):
            grad_input = 2 * (y_hat.data - y.data) / batch_size
            if y_hat.grad is None:
                y_hat.grad = grad_input
            else:
                y_hat.grad += grad_input

        out.grad_fn = _backward
        out.grad_fn_name = "MSEBackward"

        return out

Refined Version

This initial version was optimized by seperating the activation functions from Tensor and simplifying the code for all operations through the use of a backward decorator. To this end, a seperate function grad_compute was defined to compute the gradients of all operations, as in the snippet below:

def grad_compute(self, grad, op_type, other=None):
        def update_grad(grad, target_tensor, factor=1):
            """Helper function to update the gradient of a tensor."""
            if target_tensor.requires_grad:
                target_tensor.grad = grad * factor if target_tensor.grad is None else target_tensor.grad + grad * factor

        if op_type == "add":
            update_grad(grad, self)
            update_grad(grad, other, factor=1)

        elif op_type == "neg":
            update_grad(-grad, self)

        elif op_type == "mul":
            update_grad(grad * other.data, self)
            update_grad(grad * self.data, other)

Furthermore, a backward_decorator was defined to take care of the operation name, parents, and gradient function storage as well as the execution (during the forward pass) of all operation types:

def backward_decorator(op_type):
        def decorator(func):
            def wrapper(self, other):
                result = func(self, other)
                other = other if isinstance(other, Tensor) else Tensor(other)
                result.parents = {self, other}
                # Attach the grad function to the result tensor
                result.grad_fn = lambda grad: self.grad_compute(grad, op_type, other)
                result.grad_fn_name = f"{op_type}Backward"
                return result
            return wrapper
        return decorator

This allows for the simplification of the definition of all operations to the following format:

 @backward_decorator("matmul")
    def __matmul__(self, other):
        other = other if isinstance(other, Tensor) else Tensor(other)
        return Tensor(self.__data @ other.__data, requires_grad=self.__requires_grad or other.__requires_grad, is_leaf=False)

The decorator takes the forward operation name as a parameter, both to store it in grad_fn_name and to assign the proper grad_fn using the gradient engine grad_compute.

A similar organization was applied to both Activation and Loss, the main difference being defining the backward_decorator as a static method in them to be able to use it in all classes inheriting them. An example of these functions within the class Loss is highlighted below:

    def grad_compute(self, loss_type, y, y_hat):
        """
        #Centralized gradient computation for different loss functions.
        """
        if loss_type == "MSE":
            # Gradient of MSE loss with respect to y_hat
            batch_size = y_hat.data.shape[0]
            grad_input = 2 * (y_hat.data - y.data) / batch_size

        elif loss_type == "CrossEntropyLoss":
            # One-hot encoding of y
            one_hot_y = np.zeros((y.data.size, y_hat.data.shape[0]))
            one_hot_y[np.arange(y.data.size), y.data] = 1
            one_hot_y = one_hot_y.T

            grad_input = - (one_hot_y / y_hat.data) / y.data.size
            y_hat.grad = grad_input if y_hat.grad is None else y_hat.grad + grad_input

        return  y_hat.grad

    @staticmethod
    def backward_decorator(loss_type):
        def decorator(func):
            def wrapper(self, y, y_hat):
                out = func(self, y, y_hat)
                out.grad_fn = lambda grad: self.grad_compute(loss_type, y, y_hat)
                out.grad_fn_name = f"{loss_type}Backward"
                out.parents = {y, y_hat}
                return out
            return wrapper
        return decorator

Then MSE is simplified to:

class MSE(Loss):
    @Loss.backward_decorator("MSE")
    def forward(self, y, y_hat):
        error = y_hat.data - y.data
        loss = np.mean(error ** 2)
        return Tensor(loss, requires_grad=True, is_leaf=False)

Backward Pass

The main backward function is defined in Tensor to be executed through:

loss = loss_fn(y, y_hat) # loss is the Tensor output of the loss function
loss.backward()

It starts by setting the gradient of this first tensor loss to 1.

    def backward(self):
        # Start the backward pass if this tensor requires gradients
        if not self.__requires_grad:
            raise ValueError("This tensor does not require gradients.")
        # Initialize the gradient for the tensor if not already set
        if self.grad is None:
            self.grad = np.ones_like(self.__data)  # Start with gradient of 1 for scalar output

Topological Ordering

Next, a stack data structure is used to ensure following a topological ordering during the backward propagation:

        to_process = [self]
        # Processing the tensors in reverse order through a stack data structure (to establish topological order)
        while to_process:
            tensor = to_process.pop()
            # If this tensor has a backward function, then call it
            if tensor.grad_fn is not None:
                tensor.grad_fn(tensor.grad) # Pass the gradient to the parent tensors
                # Add the parents of this tensor to the stack for backpropagation
                to_process.extend([parent for parent in tensor.parents if parent.requires_grad])

The tensor loss is the first to be added to to_process. Next, its grad_fn is executed and its parents y and y_hat are added to the stack. The same process keeps repeating until the stack is empty. The grad_fn of loss was defined through the static backward_decorator during the forward propagation, but only executed when backward() is called.

Following this approach, the chain rule will be applied to compute the gradient of the loss w.r.t the weights and biases by traversing the computation graph step-by-step in reverse order. Each node will execute its previously stored grad_fn and add its parents to the stack.

A condition is added to correct the biases gradient since the biases are broadcasted in the linear layers computations to match the batch size used. In this condition, is_leaf is used to only check for leaf tensors that have no parents (i.e. only weights, biases, and input data). is_leaf is set as True by default, but it is set as False for the tensor outputs of all operations.

          #check if the tensor is a leaf and it was broadcasted (in case of batch_size>1)
          if tensor.is_leaf and tensor.data.shape != tensor.grad.shape:
                tensor.grad = np.sum(tensor.grad,axis=1).reshape(-1,1) #adjust the shape to match the data shape

Section 2:

Implementation Explanation:

User Interface:

 class Model(Module):
    def __init__(self)-> None:
        self.linear1 = Linear(32*32, 20)
        self.linear2 = Linear(20, 10)

    def forward(self, x):
        x = self.linear1(x)
        return self.linear2(x)

 model = Model()
 print(model)

 optimiser = SGD(model.parameters() , lr=0.01, momentum=0.9)
 loss_fn = MSE()
 dataset = MNIST()
 dataloader = DataLoader(dataset, batchsize=32, transform=None)

 for x, y in dataloader:
    optimizer.zero_grad()
    y_hat = model(x)
    loss = loss_fn(y, y_hat)
    loss.backward()
    optimizer.step()

To have this user interface, we implemented:

Enum class DataType

This is an Enum class, belonging to module tensor.py. It is used to define the data types of the tensor while allowing to restrict the possible values to a set of predefined ones. In addition it performs easy conversion of the data types to numpy data types.

It has 5 values for now:

uint8 is used for images, and is basically a byte. It is used to represent pixel values in images, great memory saver. Also by default in the first step of processign images the pixels are converted to uint8.

Each $DataType$ object has a string representation and can be accessed by it through:

>>> DataType.__members__['int64']
int64
>>> type(DataType.__members__['int64'])
<enum 'DataType'>

In later stages of the library we can provide a function that enlists the possible values of the DataType enum for the user to see, however the user is not meant to interact with the DataType object directly, but through the Tensor class, so this is why we didn’t prioritize it. One can argue that user want to see what dtypes are available but for now, they’ll receive the list when an error is thrown if they assign an unavailable dtype through creating a Tensor object.

Dunder methods:

Dunder Method Description
__repr__ Returns the string representation of the dtype object.
__str__ Returns the string representation of the dtype object.
__call__ Makes the object callable, this way can perform casting by just calling float32() for instance.

Aliasing was done in the Tensor module to make it a more torch-y way of accessing the dtype object:

int64 = dtype.int64
float64 = dtype.float64

This way, these variables will be loaded whenever the Tensor module is imported (which should be the case in all modules of the library). And then, when accessed through our library, it can be accessed this way (exactly like torch):

>>> import our_torch_wannabe_lib as torch
>>> a=torch.int64
>>> a(1.7)
1

class Module, Linear, Parameter, Activation:

Since the parameters corresponding to a layer should be registered as soon as the layer is declared, and the optimizer should be able to access them through model.parameters(), this was handled by the Module class because the Model class is a subclass of Module. Also, the Linear class should inherit from Module to save its parameters in the Module class.

So the Module class has as attributes two dictionaries, one to save the subclasses and another to save the parameters.

The Linear class takes as inputs the input_size and output_size. In the constructor, the weights and bias are initialized as Parameter type (Which is a Tensor with requires_grad=True and is_leaf=True). Weights are randomly initialized to random values - 0.5 to be centered around 0, and the bias is initialized to 0.

The __setattr__ method was modified inside the Module class as follows:

def __setattr__(self, name, value):
    if isinstance(value, Module):
        self._subclasses[name]=value
    if isinstance(value, Parameter):
        self._parameters[name]=value
    super().__setattr__(name, value)

This way, when a linear layer is declared, ex: Linear(32*32, 20), setting the attributes weights and bias which are of type Parameter will register them in the dictionary _parameters of the Module class.

When the model is declared, the different linear layers set as attributes, ex: self.linear1 = Linear(32*32, 20) are registered in the _subclasses dictionary of the Module class.

super().__setattr__(name, value) is used to normally set the attributes in the class dictionary, so that when we call model.linear1 for example, it returns the linear layer using the default __getattribute__ method.

Also, the Activation class was implemented to inherit from Module to save it in the _subclasses dictionary of the Module class, so that when we print the model to visualize its architecture, we can see the different layers and activation functions used in the model, and so the __repr__ method was implemented in the Module class to print the model architecture:

def __repr__(self):
    return f"{self.__class__.__name__}({_subclasses})"

with __repr__ implemented also in the subclasses to have a representation of the layers and activation functions used in the model.

In the Module class, the method __call__ was implemented to call the forward method presented as an abstract method in Module, and implemented by the subclasses (Model, Linear, Activation). In this way when we use: model(x), the forward method of the model is called, which in its turn calls the forward method of the linear layers (when self.linear1(x) is called for example) and activation functions used in the model.

The forward method of Linear applies the affine linear transformation to the input x and outputs y = xW^T + b, where W is the weights and b is the bias. The forward method of Activation is an abstract method that is implemented by the different activation functions (ReLU, Softmax) that inherit Activation class.

class Dataset, DataLoader, Transform (extensions):

Dataset

In the dataset.py module, we have the Dataset class which is an abstract class that is meant to be inherited by other classes that implement specific datasets, custom datasets or by the user to implement their own dataset.
This module uses helper functions to load and preprocess example datasets like MNIST. Some example functions are used to transform images to numpy arrays or tensors, visualize them, download and extract files from urls and read idx files.

a Dataset object shall have the following attributes:

We have the following children for now:

Dataset
├── MNIST
└── TensorDataset

Abstract methods to force the children to implement:

The datasets class is actually found within torchvision library and is used to load and preprocess datasets. What we aim to do is to provide a similar interface to the user, so that they can use our library in a similar way to how they would use PyTorch.

MNIST

$MNIST$ is a class that inherits from $Dataset$ and is used to load the MNIST dataset: digits from 0 to 9 images of size 28x28, a famous dataset used for image classification.

To start with, we will implement MNIST while also exploring how torchvision does it.
When loading it, we will get a message that the dataset is being downloaded, and then it will be stored in a folder (root), and the following file hierarchy can be seen from where we start the code:

. # -- the wd of this notebook --
└── data/
    └── MNIST/
        └── raw/
            ├── t10k-images-idx3-ubyte
            ├── t10k-labels-idx1-ubyte
            ├── train-images-idx3-ubyte
            ├── train-labels-idx1-ubyte
            ├── t10k-images-idx3-ubyte.gz
            ├── t10k-labels-idx1-ubyte.gz
            ├── train-images-idx3-ubyte.gz
            └── train-labels-idx1-ubyte.gz

As we are implementing this library from scratch, might as well implement the dataset loading from scratch as well :D

p.s. The official site is ~https://yann.lecun.com/exdb/mnist/, however the files are not available, so we revert back to a working mirror at: https://ossci-datasets.s3.amazonaws.com/mnist/, where there are essentially 2 compressed files. We will download them, extract them and read them. The data will be decompressed into idx files, which are binary files that contain the images and labels => we will transform them into Tensor objects (of dtype uint8, performing exactly like pytorch).

An interesting thing to note, while comparing out library with pytorch, is that torch uses the library PIL to load images and proceed transdormation of PIL.Image.Image objects. In our case, we used opencv which is based on C++ and showed better performance in terms of speed of loading.

While respecting encapsulation✅, we implemented getters and setters for all attributes MNIST class.

Magic methods:

Magic Method Description
__init__ Initializes the MNIST dataset while inheriting the super() constructor, takes extra attributes download and train.
__getitem__ Returns a tuple of the image and the label, after applying the transformations. Takes into consideration slicing for the training and testing sets possibly.
__len__ Returns the length of the dataset.
__iter__ Returns an iterator over the dataset, separated from __getitem__ to allow for more flexibility in the future, allowing visualization of each image in the dataset for instance when needing to access each image separately.
__repr__ Returns a string representation of the dataset, showing the number of samples and the shape of the images (super()).

Very important note considering the __getitem__ method:
AS is behaved by pytorch, for the training dataset where there exist 60000 training images of dimensions 28x28, data will be a tensor of shape (60000, 28, 28), however, while accessing each point, it should be of shape (1, 28, 28) as in pytorch, which doesnt match the default behavior. This is why we require to expand dimensions in order to match with torch’s UI.

TensorDataset

This class is used to create a dataset from tensors. It is used to create a dataset object that can be used for training or testing (each instance is either training or testing dataset).

It takes:

and root here is not needed, as the data is already provided in the form of variables

We will use this in an exmaple showing synthetic data generation and training a model on it.

Also respecting encapsulation✅, we implemented getters and setters for all attributes TensorDataset class, performin transformation on the data and target if the transform and target_transform are provided.

The same magic method sare implemented as well, however, the __getitem__ method is a bit different, as we are not loading images from files, but rather accessing them from the tensors directly.

DataLoader

$DataLoader$ is a class that is used to create an object that is iterable and can be used in the training loop. It is used to split the dataset into batches and is iterable to be usedwhile training. This can be found in the [dataloader.py](https://github.com/deeplearning-oop/2425-m1geniomhe-group-1/src/dataloader.py) module.

Testing torch’s torch.utils.data.DataLoader class, we found that it is iterable, not indexable, and has no string representation. It takes every batch of data in a tensor form: if we have 60000 (1,28,28) tensors and we take batch size of 64, it’ll return a loader with 938 tensors where each is of dimensions (64,1,28,28)(last one will be (32,1,28,28) if we have 60000 samples). Thus compresses every 64 (batch_size) tensors into one tensor.

Attributes:

Encapsulation is respected by implementing getters and setters for all attributes (that are private) ✅

We also make validation for input paramters in __setattr__ method, to make sure that the batch size is an integer and greater than 0, and that the shuffle is a boolean… Mainly focusing on each attribute type

Magic Method Description
__init__ Initializes the DataLoader object, takes the dataset, batch size and shuffle as input
__iter__ Makes the object iterable, returns the next batch of data, each is a tuple consisting of batch_size datapoints tensors
__len__ Returns the length of the DataLoader object, which is the number of batches
__getitem__ Not indexable, raises TypeError (like torch🔥)

Transform

The $Transform$ class is an abstract class that is meant to be inherited by other classes that implement specific transformations, in transforms.py module.

They are all callable classes, and they all implement the __call__ magic method, thus is the abstract method in the parent class. Their use is in the data preprocessing step before feeding the data to the model, particularly while loading the dataset using a Dataset object, that has 2 attributes transform and target_transform requiring an optional callable object to be passed to the dataset to transform the data and the labels respectively.

In torch it is also part of the seperate torchvision library in torchvision.transforms module. As is the case using vision, the most useful transformations to consider are:

We will implement them + 2 more:

Transform
├── Compose
├── Normalize
├── ToTensor
├── Standardize
└── MinMaxNormalize
Transformation Description
Compose Chain several transformations together, given a list of transformations -> transformation of transformations
ToTensor Converts the input data to a tensor, this can be a combination of different transformations (image, tensor or numpy array -> tensor)
Normalize Normalize the input data (tensor), given a tensor, mean and standard deviation
Standardize Standardize the input data (tensor), given a tensor to have a mean of 0 and std dev of 1
MinMaxNormalize Normalize the input data (tensor) to the range [min, max], given their values to scale
Compose

$Compose$ is a series of transformations that are applied to the data in a sequential manner. It is used to chain several transformations together, as in $c(x)=f(g(x))$.

It takes a list of transformations as input, and applies them in the order they are passed.

The __call__ method is implemented to apply the transformations in the order they are passed.

Normalize

$Normalize$ is a class that inherits from $Transform$ and is used to normalize the input data. It is used to normalize the input data, given a tensor, mean and standard deviation.

It takes the mean and standard deviation as input, and applies the normalization to the input data, INPLACE (because will ease out the data processign step and saves a lot of memory).

The __call__ method is implemented to apply the normalization to the input data.

Standardize

This is actually a child of Normalize, where the mean is the mean of tensor and the std is the std of the tensor given. Thus it has no attributes, and the mean and std are calculated on the fly, using the fast numpy operations.

It’s intended to transform the input data to have a mean of 0 and a standard deviation of 1, a very useful transformation in machine learning.

MinMaxNormalize

$MinMaxNormalize$ is a class that inherits from $Transform$ and is used to normalize the input data to the range [min, max]. It is used to normalize the input data, given a tensor, min and max values.

It takes the min and max values as input, and applies the normalization to the input data.

The __call__ method is implemented to apply the normalization to the input data.

In all the cases where there exist attributes (inplace, mean, std, min, max), we implemented getters and setters for them, respecting encapsulation✅

Section 3: Evaluation & Comparison to Pytorch

Our library was initially tested on the MNIST dataset to guide our implementation. Our final version was able to outperform the testing accuracy of pytorach as highlighted in the plot below:


The plot shows the accuracy on the MNIST testing set over 10 runs of our library against pytorch. The model used is linears1->ReLU->Linear2->Softmax with CrossEntropy loss and learning rate 0.01 with momentum 0.9 for the SGD optimizer.

The following results are the same with learning rate set at 0.1 without momentum (regular SGD), reflecting that the same pattern holds.


We also note that our library tends to be significantly more stable than pytorach over different runs and over learning rate changes. Our library’s accuracy remains close to 90% while pytorch goes from accuracies of 90% down to 75% depending on the run.

Similarly, our running time is slightly better than pytorch for MNIST, and this pattern holds over different runs. This could be explained by the relative simplicity of our implementation relative to the complexity of pytorch’s implementation which requires many dependencies. In general, for complex tasks, pytorch implements several optimization tools that will expectedly make it much more efficient than our approach. But for such simple tasks, out approach can do as good as pytorch or even outperform it.


In addition to MNIST, we tested our library on multiple well-known simulated datasets (linear, circular, and spiral). The distribution of one example of simulated linear data is shown below:


We highlight below how both our approach and pytorch converge to achieve increased accuracy over the course of 10 epochs over the same data:


Section 4: Limitations

  1. Parameters Initialization: we currently initialize biases as vectors of zeros and initialize weights using random.rand() then - 0.5 to center them around 0 preventing bias to positive numbers. Pytorch incorporate more advanced initialization approaches, such as Xavier, which are tailored to specific activation functions and help improve the convergence speed and stability.

  2. Computation Graph Implementation: our implementation of the computation graph shares deveral elements of that of pytorch. However, it currently lacks other optimizations like dynamic graph pruning or efficient memory management, which are useful for larger models.

  3. Mode and no_grad(): our library introduces modes for training and testing, but the implementation can be further optimized to make better use of them. While, the gradients will not computed during testing in our approach since loss.backward() won’t be executed, the computation braph will still be constructed, which we could consider turning off, mimicking pyTorch’s torch.no_grad().

  4. GPU Support: currently, our library operates only on CPUs, which limits its applicability to small-scale experiments. PyTorch leverages GPUs using CUDA. Adding GPU support could make our library more competitive for real-world large-scale applications.

  5. More Extensive Testing: While initial benchmarks and simulated data show that our library performs quite well in terms of accuracy, running time, stability, and convergence, further testing of larger models on more extensive benchmark datasets is necessary. For the future, we could make use of benchmarks datasets like CIFAR-10 for more comprehensive comparison with pytorch. Additionally, we can test for different architectures, such as convolutional and recurrent networks.

This site is open source. Improve this page.
